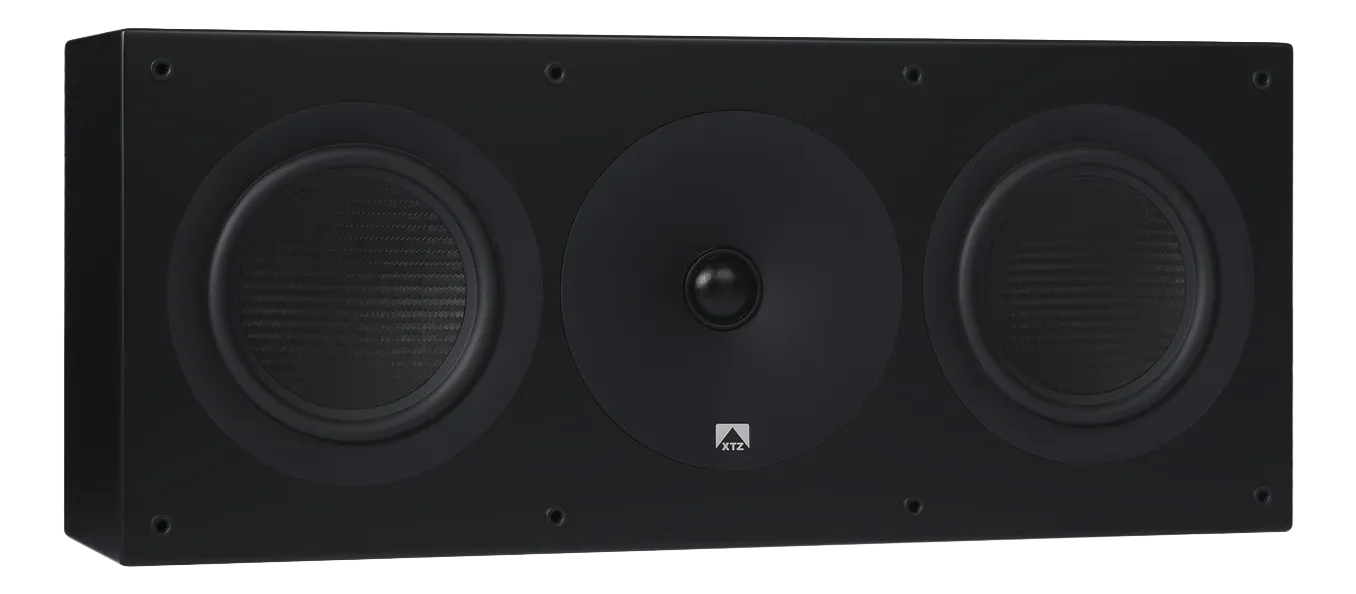

XTZ Spirit 6 LCR
XTZ
XTZ Spirit 6 LCR

 1 REVIEWS

The XTZ Spirit 6 is an exceptional LCR (Left Center Right) speaker delivering dynamic voice reproduction and offering truly premium sound at a remarkable value. It was designed to provide as much of the same acclaimed sound signature as the Spirit 8 as possible but in a smaller slimmer format ideal for on-wall application in multi-channel setups.

While a formidable LCR speaker its compact and slim profile also makes it a very popular choice as a powerful wall mounted surround speaker for any system.

Featuring a precise 1 silk dome tweeter flanked by two 5 ¼ mid/bass drivers in a DAppolito (MTM) arrangement the Spirit 6 reproduces everything from nuanced dialogue and complex musical passages to impactful movie explosions naturally and accurately. Its bass performance is surprisingly deep and powerful for its design making this speaker extremely flexible and a standout performer in its price range.

30-Day Money Back Guarantee

Lifetime Customer Support

5-Year Warranty

In stock!
$179.00 $179.00

Including VAT (0%) $0.00

Quantity: 1 Unit

undefined

Color

Currently unavailable

Bigger sweet spot with Waveguide Tweeter

Punchy Bass that goes down to 63Hz

EQ & Custom Port Tuning for Room Matching

MTM Layout for Vocal Precision

Ultra-Compact Design for Discreet Placement

Wall-Mountable

Overview

1” silk dome waveguide tweeter

Controlled dispersion, effortless clarity

Specially adapted for the Spirit series, the 1" silk dome tweeter is seamlessly integrated with a precision waveguide. This design is fundamental to its performance—providing controlled dispersion for a wide, even sweet spot. It’s especially vital for LCR speakers, as it ensures consistent sound character in any orientation, reduces sensitivity to room acoustics, and delivers crystal-clear highs with high efficiency and low distortion.

Wide, consistent coverage

The waveguide ensures a broad, even listening area and consistent sound character, making it ideal for both vertical and horizontal placement while reducing room acoustic sensitivity.

Clear, low-distortion detail

Delivers crystal-clear high frequencies with minimal distortion, even at high volumes, thanks to increased efficiency.

Advanced engineering and stability

A high-performance motor with ferrofluid cooling ensures reliable output, while the dome’s rigid, damped mount minimizes resonance and protects against damage.

Dual 5.5” mid/bass drivers

Natural vocals, dynamic mids, and surprising bass

Developed in our laboratory, the Spirit 6 features two custom-designed 5.5 inch (150 mm) mid/bass drivers in a D’Appolito (MTM) configuration. This symmetrical layout is key to its focused sound: it improves vocal clarity, widens dispersion, and reduces distortion.

Surprising bass impact

Despite its slim profile, the Spirit 6 delivers unexpectedly deep and powerful bass, adding authority to music and film.

Focused vocals and dialogue

The MTM layout enhances sound focus and controls dispersion. When used horizontally, it improves dialogue clarity by reducing reflections and coloration.

Richly detailed midrange

Renders instruments and voices with natural tone and precision.

Sound tuning

Tailor performance to your room

Every listening space is unique, which is why the Spirit 6 includes smart tuning features to optimize for placement and room acoustics.

Tweeter level adjustment

Rear jumper lets you fine-tune high frequencies to suit your room's acoustics or personal preference.

Bass reflex port tuning

Sealable ports allow for tighter low-frequency control, ideal for near-wall or in-cabinet use.

Crossover

Smooth transitions and accurate voicing

The Spirit 6 uses a precisely tuned crossover for smooth, phase-coherent transitions. The waveguide and MTM layout support an optimal crossover point for controlled dispersion and natural integration.

Optimized integration

MTM layout and waveguide enable a 2700 Hz crossover for accurate dispersion and integration, helping maintain consistent imaging and tonal balance across the listening area.

Optimized for Coherence

Ensures seamless, phase-coherent driver integration for a unified and immersive soundstage

High-grade components

High-grade film capacitors and air-core inductors ensure great transparency and low distortion.

Cabinet and finish

Slim format, full performance

Spirit 6 combines compact dimensions with exceptional rigidity and acoustic inertness, creating a stable platform that lets the drivers perform with maximum precision and minimal coloration.

Thick, rigid construction

25 mm MDF front baffle, 18 mm side panels, and internal bracing ensure low coloration.

Minimized resonance

A significant amount of strategically placed damping material absorbs internal standing waves, ensuring the Spirit 6 reproduces deep bass frequencies with precision and composure.

Premium finish

A perfectly applied multi-layer lacquer, available in matte black or matte white, gives the cabinet a timeless, furniture-grade appearance.

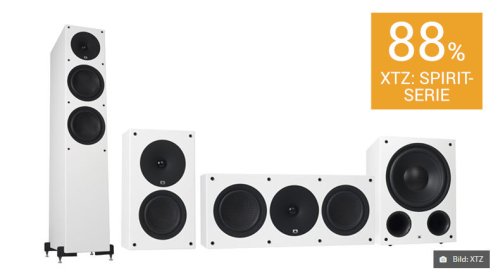

The Spirit Series Guide

Build your Spirit surround system

If you're looking to create a tonally matched surround system, consider using the Spirit 6 not only for the left, center, and right channels, but also as surrounds. To save some money, the Spirit 2 performs almost as well for surround use. For a profound low-frequency foundation, the Spirit SUB 12 is an excellent choice. You can learn more about building your ideal Spirit system on our dedicated comparison page.

Technical specifications

Construction Type
2-way LCR Speaker
Tweeter driver
1 x 25 mm (1") dome tweeter (Multi-coated in Waveguide design)
Midrange / Woofer driver
2 x 150 mm (5 ¼") Cocentric Dual Layer C-ABS cone driver (Cellulose fiber, acrylonitrile butadiene styren)

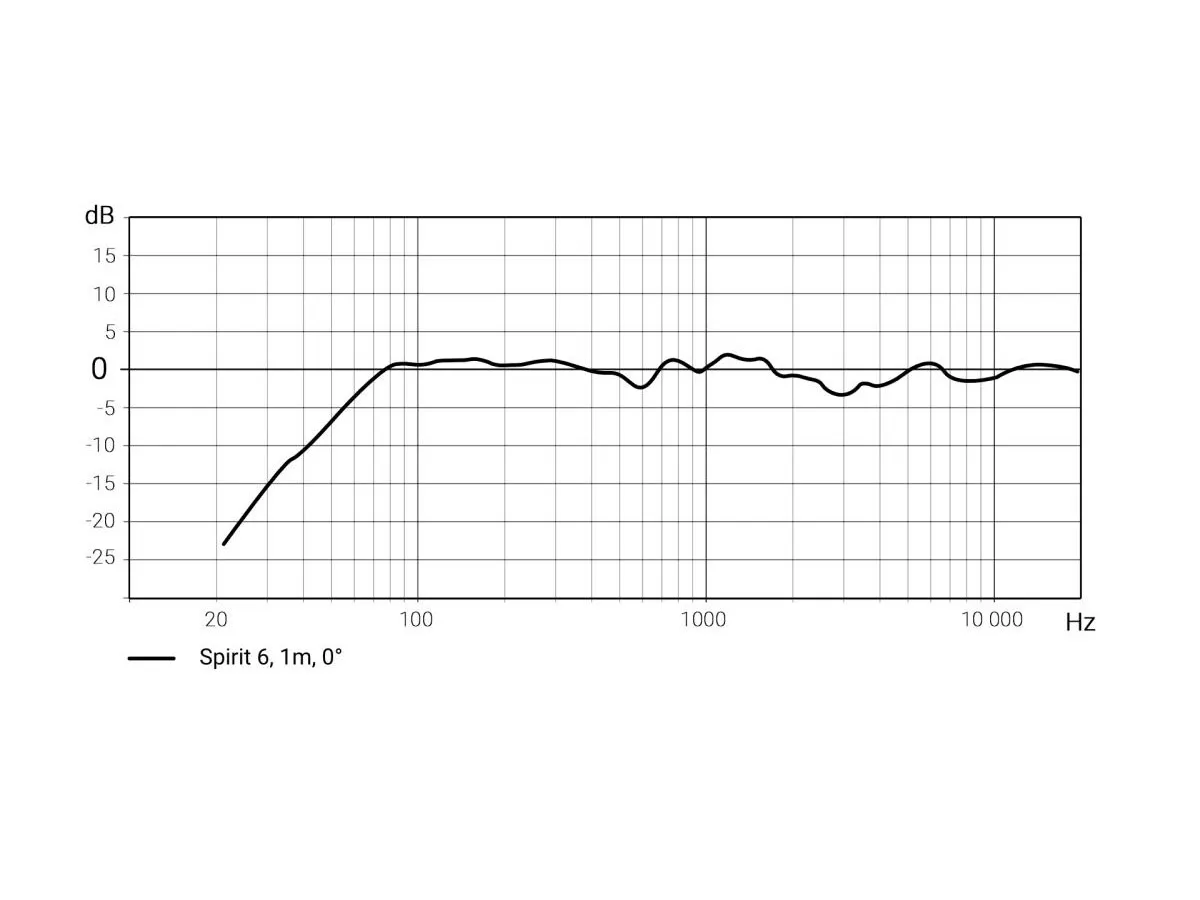

Frequency Response
63 - 22.000 Hz (+/- 3dB)
Nominal impedance
4 - 8 Ohm
Sensitivity
86 dB (2,83 V/1 m)
Power handling
250 W Short term IEC 268-5, 125 W Long term IEC 268-5
Connections
Gold plated
Sound tuning settings
Bassreflex / Sealed (2 ports), Treble adjustable in 2 different modes
Crossover frequency
2.700 Hz
Filter steepness
Midrange / Woofer driver: 12 dB, Tweeter: 24 dB
Cover
Magnetic, Black fabric, White fabric
Feet
4 x rubber spikes (M6 thread)
Dimensions
480 x 200 x 140 mm (W x H x D) /19.1 x 7.9 x 5.6"
Weight
7,5 kg / 17 lbs
Wall mounting
Keyhole mounting slots
Available colours
Matte black, Matte white
Warranty
5 years
Quantity
1 Unit

Download

Get in touch with us


Pro Reviews

View All
User avatar
Zhuhai
Zhuhai

"The new Spirit series is made for people who appreciate the true quality of music and movies. It is like real sound which gives you the feeling to really be in the center of the event. Gripping bass as well as accurate mid and treble are the strengths of the Spirit Series. The use of in-house developed and optimized high-quality drivers in neatly manufactured cabinets with a great finish is unique in this price range and even provides a larger number of audiences to enjoy the natural and balanced sound of XTZ speakers. -Zhuhai"

User avatar
AREA DVD
AREA DVD

"XTZ has practically done everything right with the Spirit series: natural harmonious and precise sound noble workmanship contemporary look - and the whole at a price that amazes. For a around 2000 EUR it will be difficult to get an even more powerful overall package. The extremely powerful active subwoofers clearly stands out in the Spirit set. All components are well processed leaving little scope for criticism: It would be desirable if the Swedes offered suitable top firing modules for the Spirit 11 front loudspeakers.- Carsten Rampacher"

User avatar
likehifi.de
likehifi.de

"For this price class XTZ offers a wonderful 5.1 set with the Spirit series which does not have to hide behind big names. The sound is full and powerful but at the same time also audibly dynamic. Specifically adapted to the own hearing or home cinema - The XTZ play a league higher than you would have expected it at the price and we say: Do not hesitate and simply try the set at your own home. - Erik Schober + Great price / performance ratio + Good sound reproduction + Numerous sound adjustments possible - Nothing"

User avatar

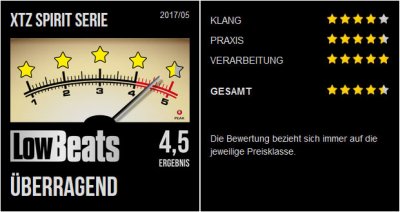

Lowbeats.de
