The XTZ INWALL Series delivers powerful, cinema-grade sound from sealed, low-profile speakers that blend effortlessly into your space. Designed for baffle walls or clean on-wall installations, each model combines precision engineering, dynamic performance, and flexible mounting—all in cabinets as shallow as 117 mm.

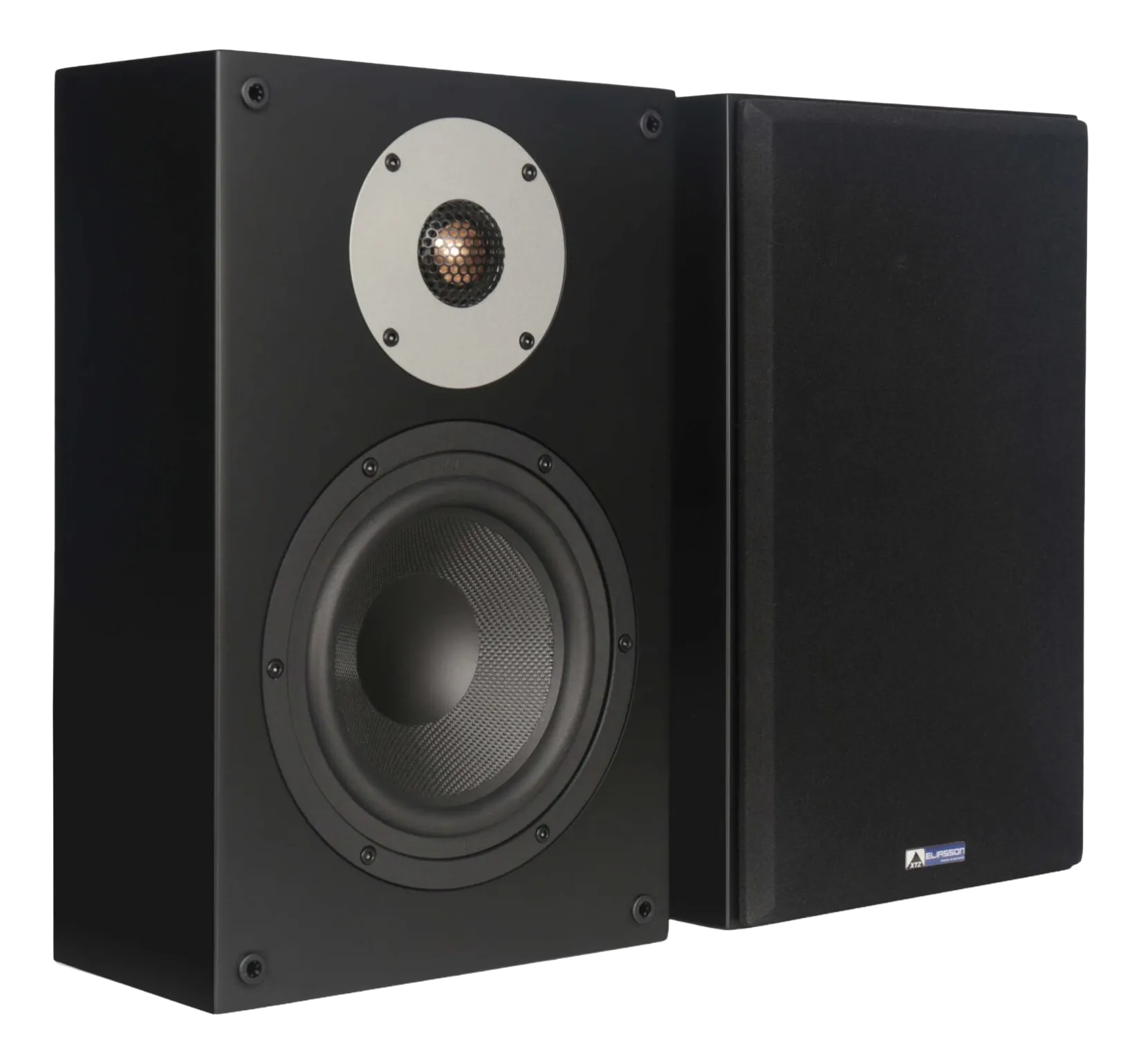

Slim and straightforward, the E-IW61 is a compact 2-way design optimized for surround use. Its 6.5" Kevlar woofer and aluminum-magnesium tweeter deliver clear, dynamic sound in a sealed, low-profile enclosure that works both on-wall and in-wall. Sold in matched pairs.
Frequency Response | Width: | Height: | Depth: | Weight: |
---|---|---|---|---|
90 - 30,000 Hz | 220 mm | 220 mm | 117 mm | 5.8 kg |

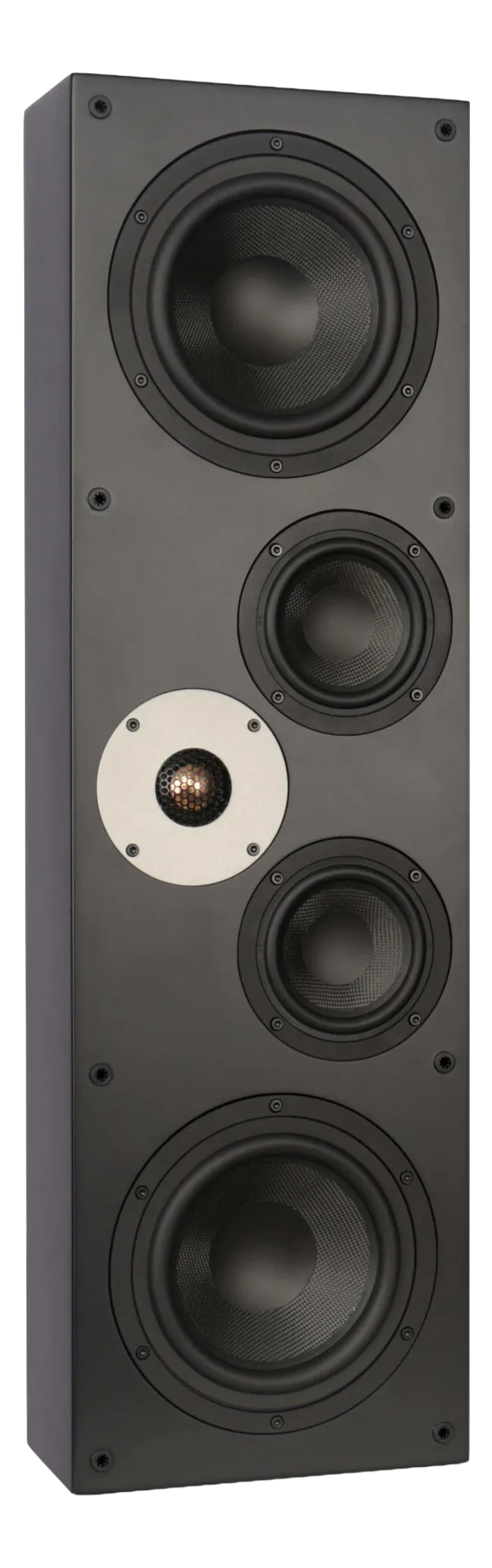

The E-IW62 combines cinema-grade dynamics and installation flexibility in a 3-way sealed format. Dual 6.5" woofers and dual 4" mids deliver high-impact sound, while the 1" tweeter ensures crisp, intelligible highs—even behind screens. Internal driver isolation and a 117 mm depth make it perfect for LCR use in shallow baffle walls or on-wall setups.
Frequency Response | Width: | Height: | Depth: | Weight: |
---|---|---|---|---|
80 - 30,000 Hz | 220 mm | 740 mm | 117 mm | 13 kg |

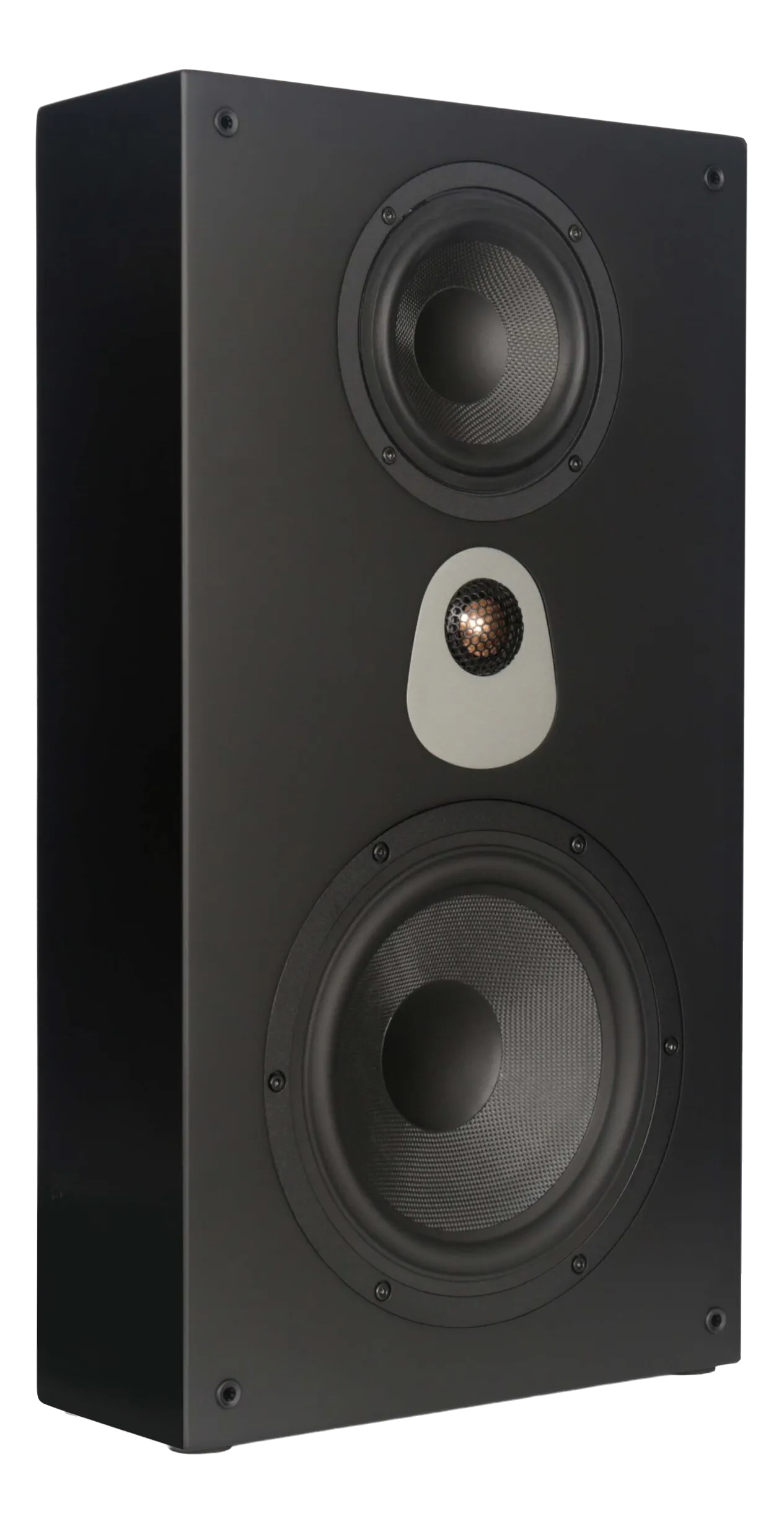

The E-IW8 offers powerful performance in a slimmer form, making it a versatile option for vertically placed LCRs or more dynamic surround roles. A 5" Kevlar midrange and 8" woofer deliver full-bodied, fast sound, while the sealed design and 117 mm depth allow easy integration into modern rooms and media walls.
Frequency Response | Width: | Height: | Depth: | Weight: |
---|---|---|---|---|
80 - 30,000 Hz | 300 mm | 550 mm | 117 mm | 10 kg |
As the largest and most dynamic model in the series, the E-IW82 delivers the cinematic scale and low-end authority typically reserved for far bulkier speakers. With dual 8" woofers, dual 4" mids, and a centered aluminum-magnesium tweeter—each in isolated chambers—it offers explosive dynamics, refined detail, and pinpoint imaging. Designed for baffle wall or on-wall use, this sealed 3-way speaker is the ideal LCR for purpose-built home cinemas.
Frequency Response | Width: | Height: | Lorem | Lorem |
---|---|---|---|---|
70 - 30,000 Hz | 300 mm: | 820 mm | 117 mm | 16 kg |

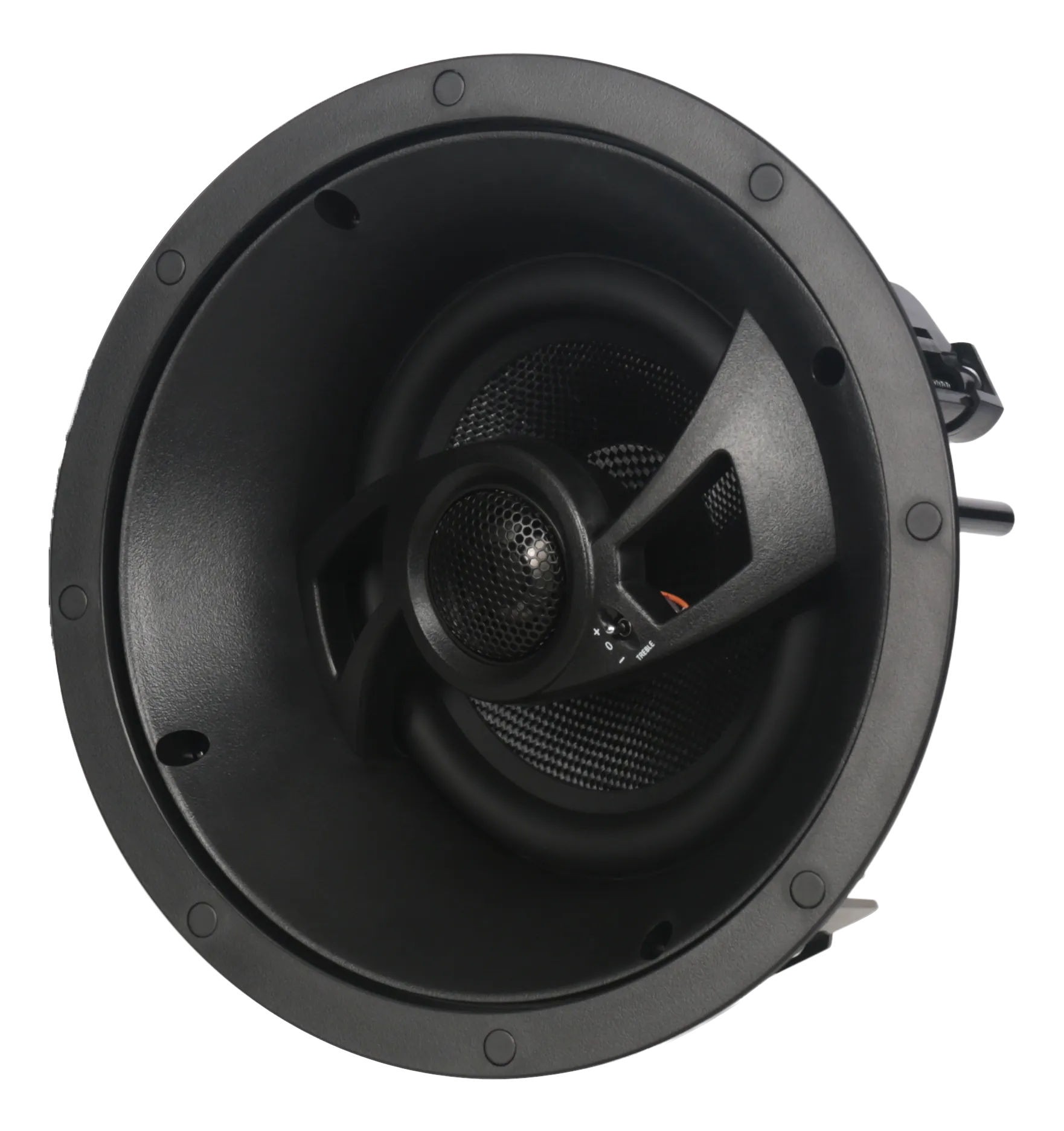

The E-IC6 uses a coaxial angled driver layout to ensure clear, directional sound in ceiling-mounted Atmos/DTS:X roles. Its 6.5" fiberglass woofer and titanium dome tweeter pair naturally with INWALL models—creating a tonally matched and immersive sound field.
Frequency Response | Diameter | Depth: | Weight: |
---|---|---|---|
65 - 25,000 Hz | 230 mm / 9" | 130 mm / 5" | 1.9 kg / 4.2 lbs |

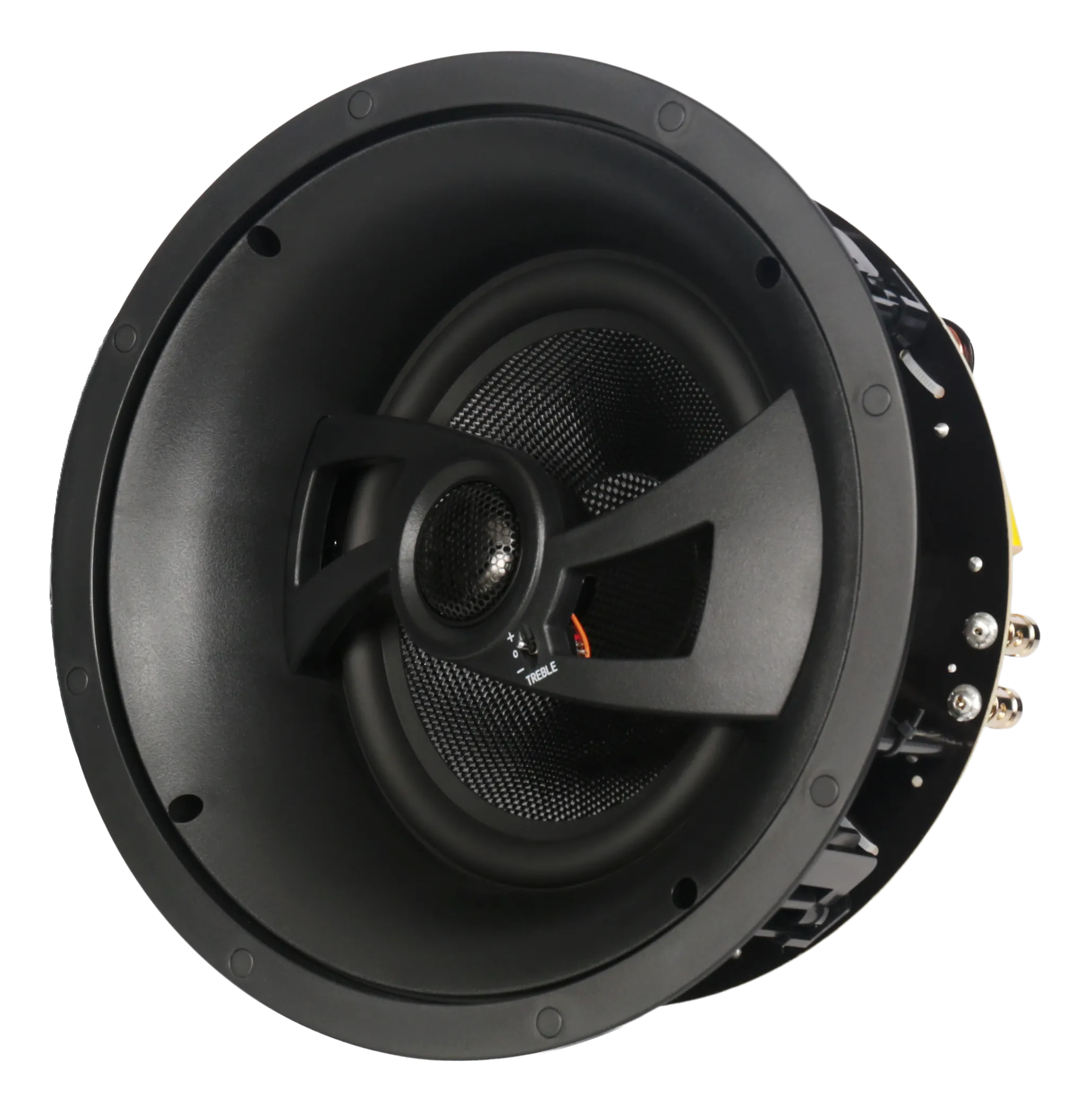

With an 8" woofer and coaxial titanium tweeter, the E-IC8 provides more low-end reach and dynamic weight, ideal for larger rooms or overhead positions that demand presence and scale. A perfect match with E-IW62 or E-IW82 in powerful Atmos systems.
Frequency Response | Diameter | Depth: | Weight: |
---|---|---|---|
52 - 25,000 Hz | 287 mm / 11.3" | 178 mm / 7" | 2.9 kg / 6.4 lbs |
E-IW61 Pair | E-IW62 LCR (1 Unit) | E-IW8 LCR (1 Unit) | E-IW82 LCR (1 Unit) | E-IC6 (1 Unit) | E-IC8 (1 Unit) | |
---|---|---|---|---|---|---|
Speaker Type | Slim On-wall | Slim On-wall | Slim On-wall | Slim On-wall | Ceiling Speaker | Ceiling Speaker |
Use Case | Stereo, Surround | Stereo, Center, Surround | Stereo, Center, Surround | Stereo, Center, Surround | Stereo, Height Channel, Surround | Stereo, Height Channel, Surround |
Tweeter | 1" dome | 1" dome | 1" dome | 1" dome | 1" dome | 1" dome |
Mid / Woofer | 1 x 6.5" | 2 x 6.5" | 1 x 8" | 2 x 8" | 1 x 6.5" | 1 x 8" |
Frequency Response | 90 – 30,000 Hz | 80 – 30,000 Hz | 80 – 30,000 Hz | 70 – 30,000 Hz | 65 – 25,000 Hz | 25 – 160 Hz |
Power Handling | 160 W Short term, 80 W Long term | 300 W Short term, 150 W Long term | 240 W Short term, 120 W Long term | 300 W Short term, 150 W Long term | 160 W Short term, 80 W Long term | 200 W Short term, 100 W Long term |
Sensitivity | 90 dB | 92 dB | 93 dB | 93 dB | 88 dB | 89 dB |
Size (mm) L x W x D | 220 x 350 x 117 | 220 x 740 x 117 | 300 x 550 x 117 | 300 x 820 x 117 | Diameter: 230 Depth: 130 | Diameter: 287 / 11.3" Depth: 178 / 7" |
Weight | 5.8 kg | 13 kg | 10 kg | 16 kg | 5.3 kg | 6.4 kg |
