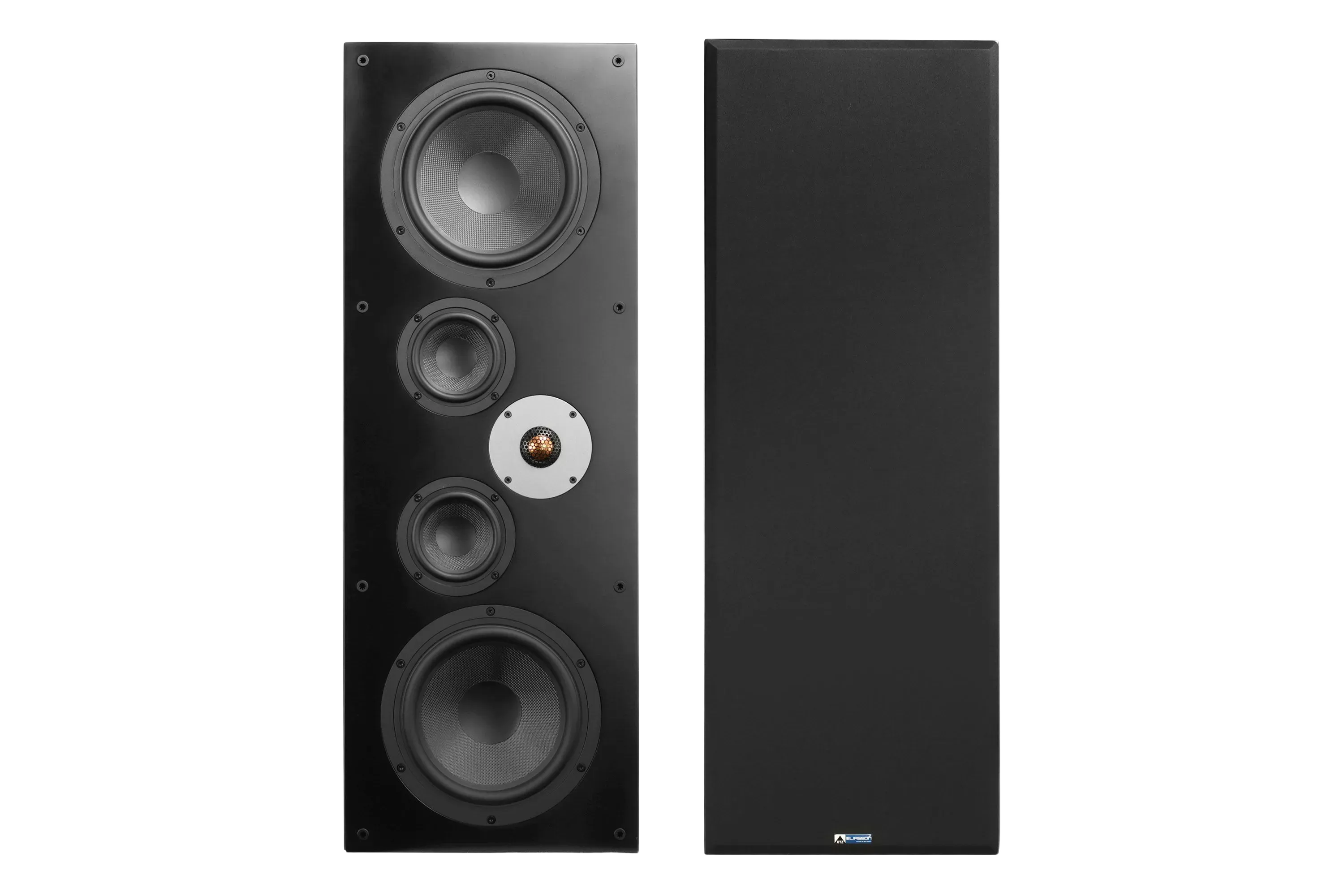

The E-IW82 is the largest and most powerful speaker in XTZs INWALL Series. Built for purpose-built home cinemas that demand maximum output detail and clarity from a speaker that can disappear into the wall. With a sealed cabinet ultra-slim 117 mm depth and a true 3-way 5-driver layout it delivers the scale dynamics and low-end authority normally associated with far bulkier speakers.

Whether installed in a baffle wall behind an acoustically transparent screen or mounted on-wall in a high-performance theater the E-IW82 delivers an immersive soundstage with outstanding clarity and impact.

The E-IW82 integrates easily into Dolby Atmos and DTS:X systems and pairs naturally with XTZs E-IC6 or E-IC8 in-ceiling speakers to create a seamless immersive setup with consistent tonality and spatial precision.

30-Day Money Back Guarantee

Lifetime Customer Support

5-Year Warranty

In stock!
$415.00 $415.00

Including VAT (0%) $0.00

Quantity: 1 Unit

undefined

Currently unavailable

Discreet 117 mm on-wall installation

1" Al/Mg tweeter for clear, controlled treble

Handles high SPL with clean, dynamic playback

Compact size, cinema-grade performance

All kevlar drivers for fast, detailed dynamics

Extends to 80 Hz with clean, controlled bass

Overview

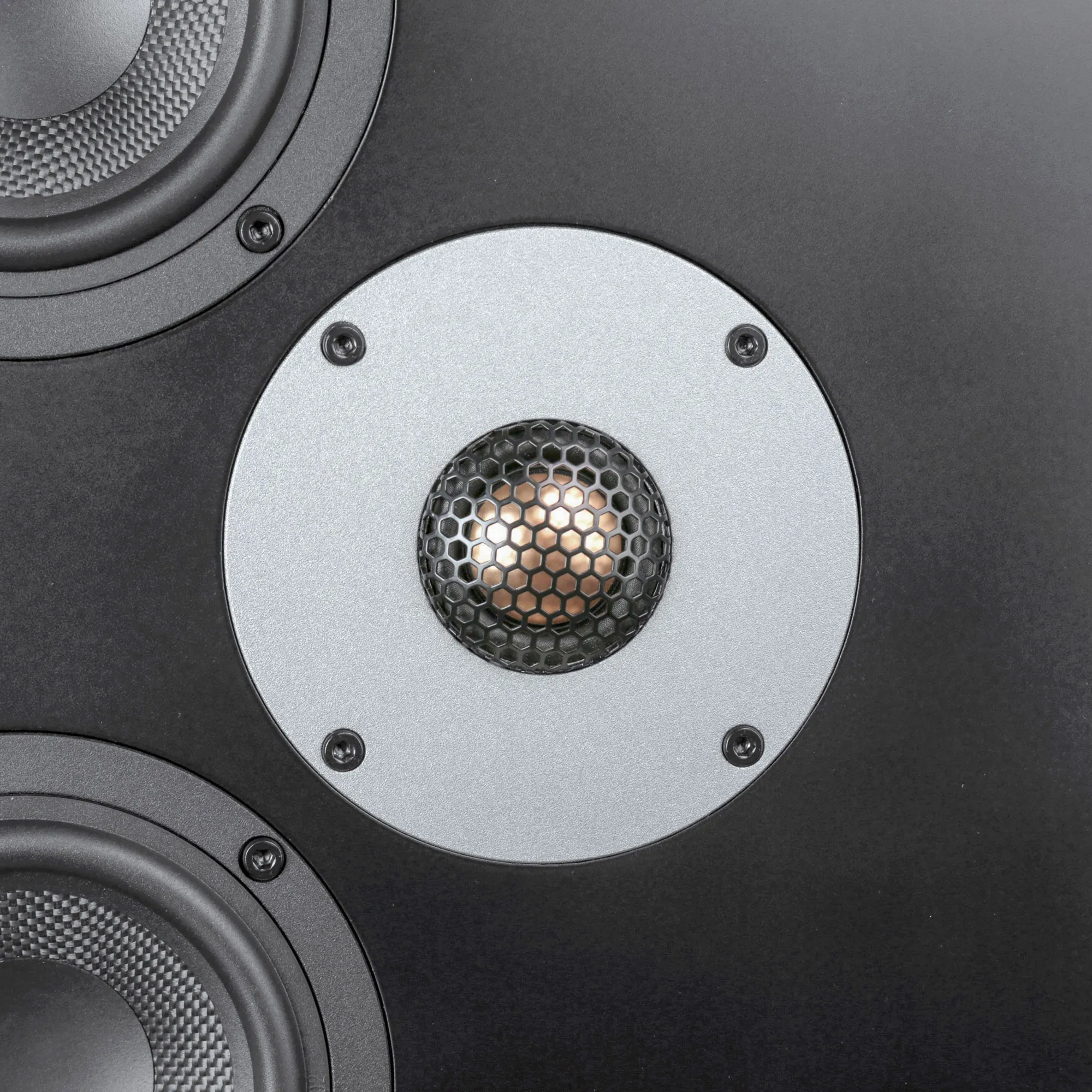

1" aluminum-magnesium tweeter

Clarity, Stability, and Control

Engineered for clean, stable performance, the E-IW82’s 1" aluminum-magnesium dome tweeter delivers clear, detailed treble. Thanks to its fast impulse response and natural dispersion, this clarity is maintained even at reference volume or when placed behind an acoustically transparent screen, making it ideal for baffle wall installations.

Extended high-frequency detail

Clear and consistent performance across the listening area.

Clean, fatigue-free treble

Stable and detailed sound, even at reference volume.

Screen-optimized clarity

Maintains clarity behind acoustically transparent fabric.

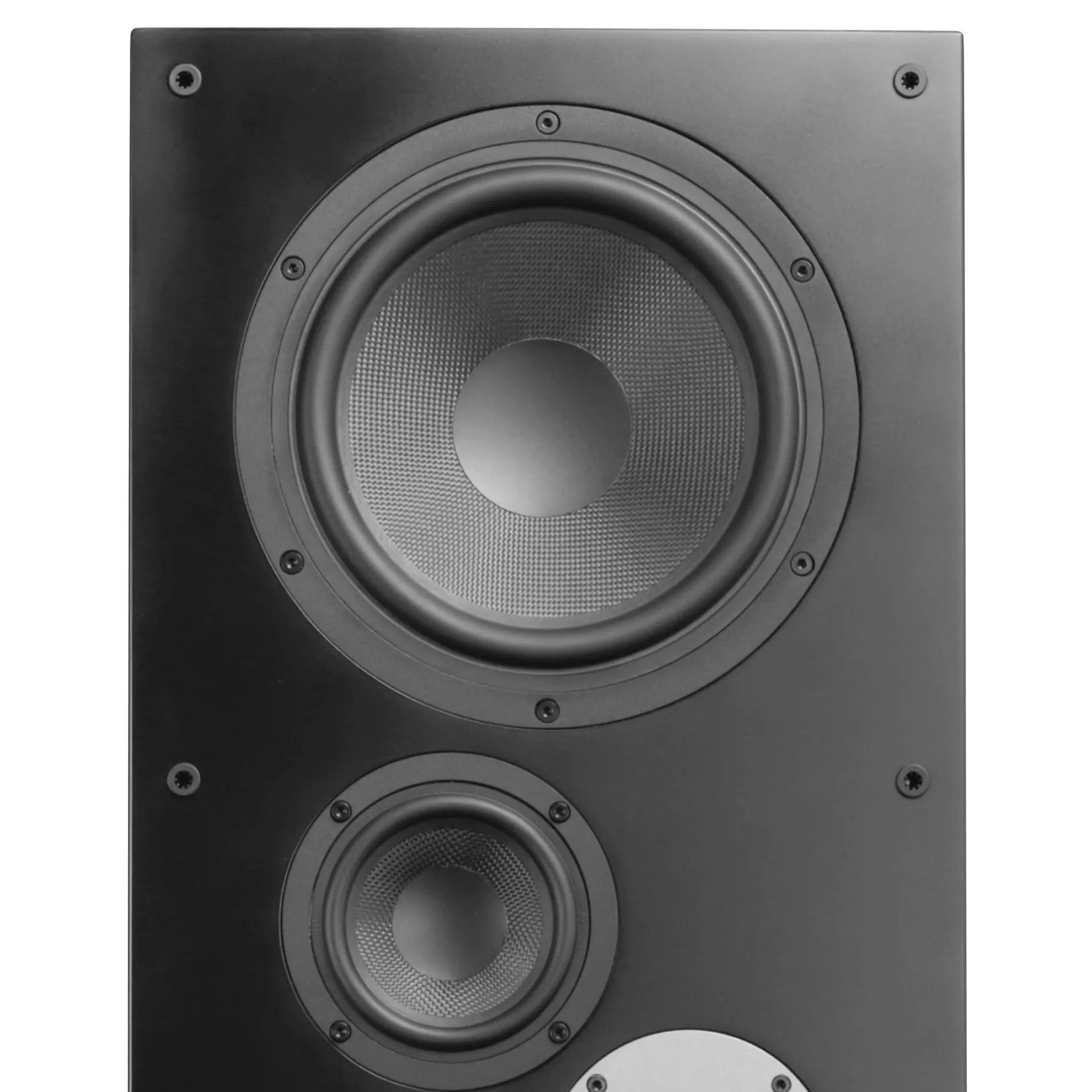

Dual kevlar midrange & woofers

Massive output, balanced fidelity

Designed for modern cinema, the E-IW82 features two 4-inch Kevlar midrange drivers and two 8-inch Kevlar woofers, all with long-throw designs and custom motor systems developed through XTZ’s extensive in-house R&D. These drivers are tailored to the cabinet for optimal integration and use a high-power magnet system that delivers excellent linearity and supports uncompressed excursion. The Kevlar diaphragms are engineered for high stiffness and low mass, enabling fast, accurate response with minimal distortion.

Kevlar cones for precision

The impressive stiffness-to-weight-ratio of kevlar maintains tight control and prevents distortion, even at high volumes

Optimized for LCR Use

The horizontal driver layout supports consistent performance whether mounted vertically or horizontally, ideal for LCR roles in modern home cinemas.

Cinema Tuned Dynamics

The drivers are specifically tuned for dynamic, high SPL cinema playback, handling demanding scenes with power and precision.

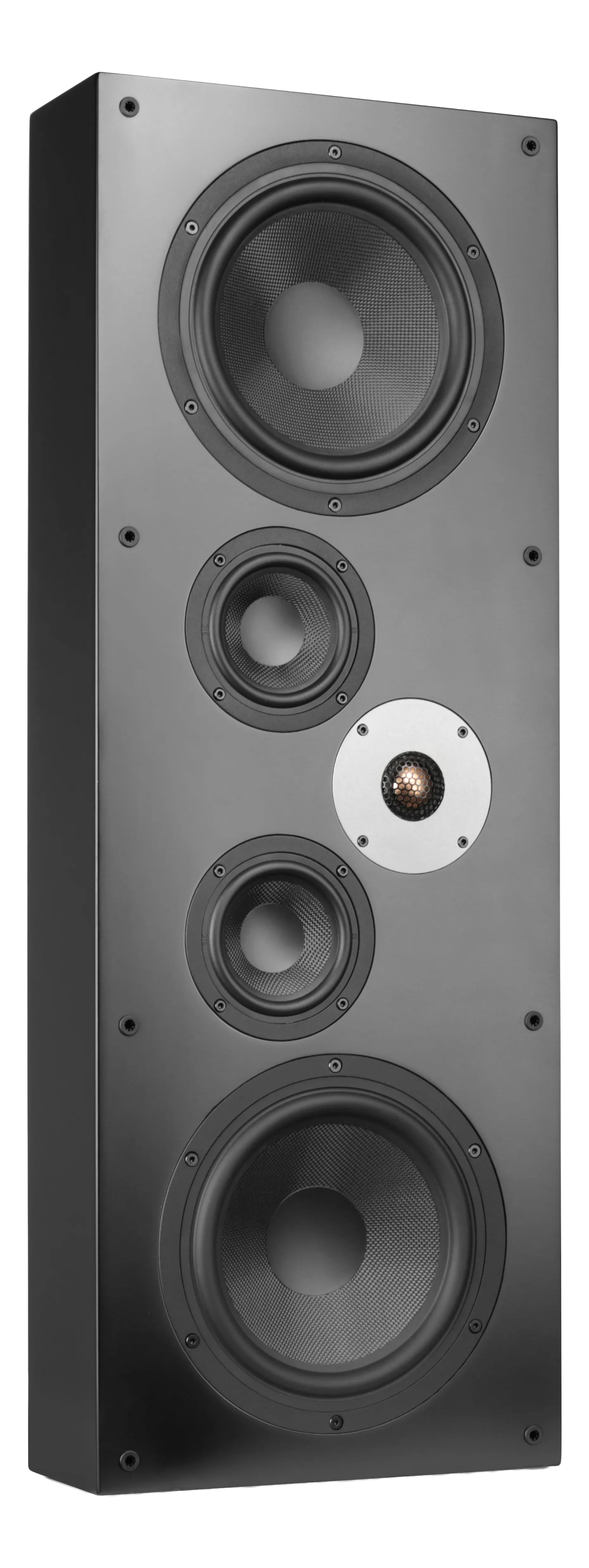

Slim sealed enclosure

Engineered for Baffle Walls & On-Wall Use

The E-IW82’s sealed MDF cabinet is just 117 mm deep, with a 25 mm front baffle and 18 mm side panels. Internal damping and bracing reduce vibration and box coloration, while the shallow depth supports baffle wall or on-wall integration.

Ideal for Shallow Baffle Walls

The sealed, slim profile design requires no rear port clearance, making it perfect for installation in tight spaces.

Rigid Enclosure

The thick MDF and internal damping prevents unwanted resonances and preserves clarity

Flexible LCR mounting

Enables easy vertical or horizontal placement of the EIW62 as a left, center, or right speaker.

Crossover

Smooth transitions and accurate voicing

The E-IW82 features a carefully tuned crossover for smooth transitions between tweeter, midrange, and woofer drivers. The result is a unified soundstage with natural voicing and excellent phase alignment.

Optimized for Coherence

Ensures seamless, phase-coherent driver integration for a unified and immersive soundstage.

Premium components

High-grade film capacitors and air-core inductors ensure great transparency and low distortion.

The inwall / inceiling series guide

Crafting Your Surround System

If you're building a discreet, high-performance home cinema, the InWall / InCeiling Series provides a flexible foundation for both front-stage and surround applications. All models share the same acoustic DNA, ensuring seamless tonal integration whether mounted behind a screen, on the wall, or paired with XTZ’s in-ceiling speakers for immersive formats like Dolby Atmos® and DTS:X®.

Technical specifications

Construction Type
3-way In-wall / On-wall speaker
Tweeter driver
1 x 25 mm (1 inch) aluminum-magnesium alloy dome
Midrange Driver
2 x 101 mm (4 inch) Kevlar composite cone
Woofer driver
2 x 203 mm (8 inch) Kevlar composite cone
Frequency Response
70 - 30.000 Hz (+/- 3dB)
Nominal impedance
4 Ohm
Sensitivity
93 dB (2,83 V/1 m)
Power handling
300 W Short term, 150 W Long term
Connections
Gold plated
Cover

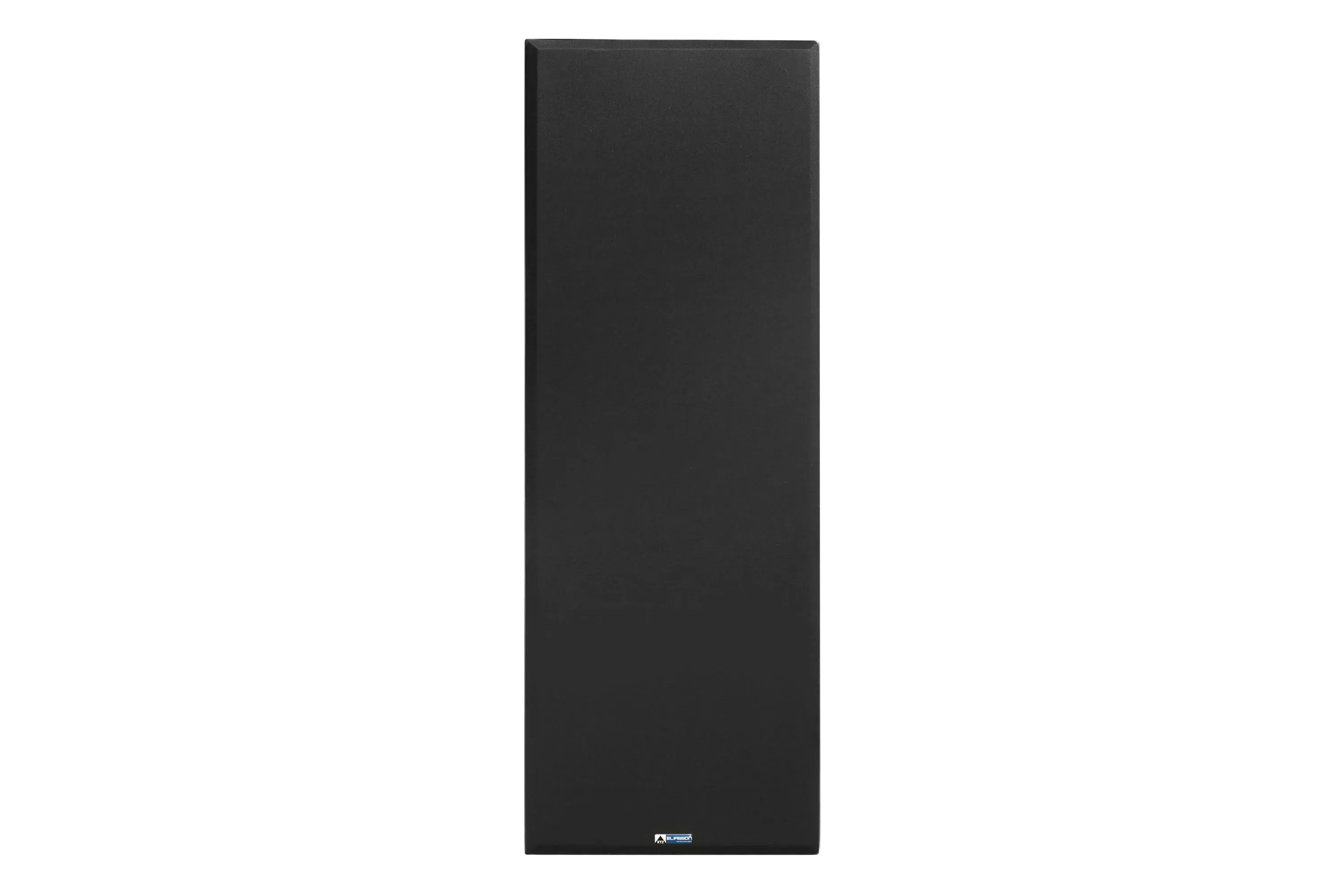

Black fabric, plug-in / detachable
Dimensions
300 x 820 x 117 mm (W x H x D) / 11.8 x 32.3 x 4.6"
Weight
16 kg / 35.3 lbs
Wall mounting
Keyhole mounting slots
Available colours
Matte black
Warranty
5 years
Quantity
1 Unit
