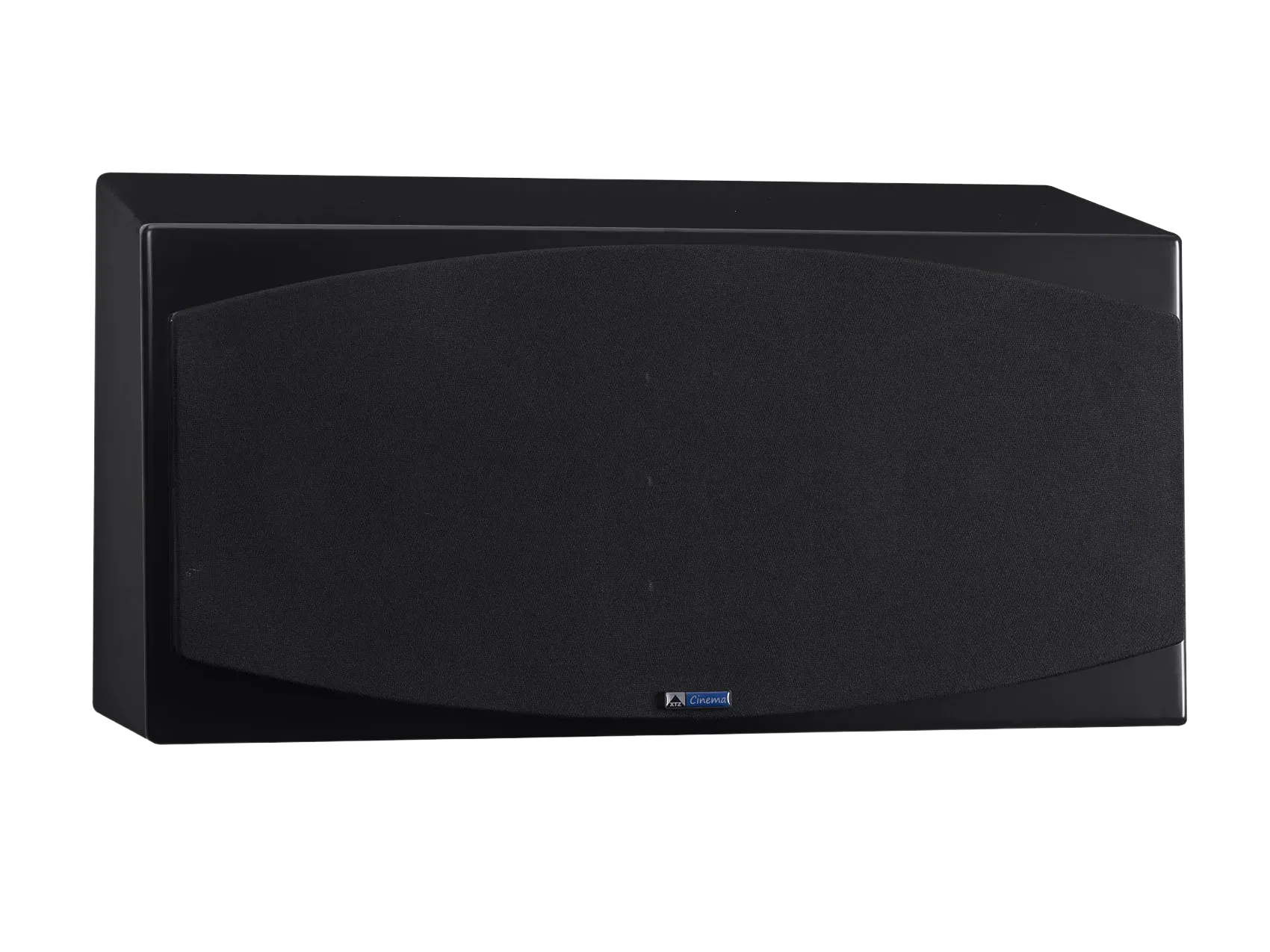

The XTZ Cinema M8 Center delivers the same precision output and tonal balance as the rest of the M8 lineupanchoring the soundstage with natural intelligible dialogue and lifelike presence. Whether youre watching fast-paced action or subtle drama it ensures that voices stay locked to the screen with clarity and authoritywithout getting lost in the mix.
Its advanced driver configuration and wide dispersion make it just as effective across multiple seating positionsproviding a consistent and immersive front soundstage for everyone in the room.
30-Day Money Back Guarantee
Lifetime Customer Support
5-Year Warranty
Including VAT (0%) $0.00
undefined
Currently unavailable
Hex Tweeter Array for Wide Dispersion
Cinematic base down to 49Hz
Extreme SPL Capability for Rooms up to 120m²
MTM Design results in less vertical reflections
91dB Sensitivity & 600W Peak Power
Wall-Mountable
Hex tweeter midrange array
At the heart of the Cinema M8 Center is a custom-developed Hex Tweeter Array, consisting of six 1" silk dome tweeters. Five are optimized for the critical midrange region, and one handles treble extension. This layout delivers high output, low distortion, and controlled dispersion that supports immersive, room filling sound.
Smooth mid to treble transitions
The array spans 950 Hz to 30,000 Hz, with five tweeters handling the midrange. This ensures smooth, detailed reproduction through the most sensitive band of human hearing.
Focused sound with less reflection
Narrow dispersion reduces unwanted reflections from floors, ceilings, and walls. This improves clarity in acoustically reflective spaces.
Pinpoint imaging
Tightly spaced, identical tweeters behave like a single coherent source, preserving timing and spatial accuracy for lifelike placement of voices and effects.
Even sound across the room
Maintains consistent tonal balance across a ±30° horizontal angle, ensuring everyone hears the same detailed sound.
Fast, dynamic response
Ultra light silk diaphragms respond faster to transients than traditional midrange drivers, improving clarity and articulation.
High output, low distortion
With six tweeters sharing the load, each operates efficiently within its range, enabling louder playback with reduced distortion.
The M8 Center uses two 8" long fiber pulp woofers flanking the tweeter array in an M-T-M layout, designed for horizontal placement. This arrangement enhances symmetry, reduces sidewall reflections, and concentrates vocal energy in the listening zone.

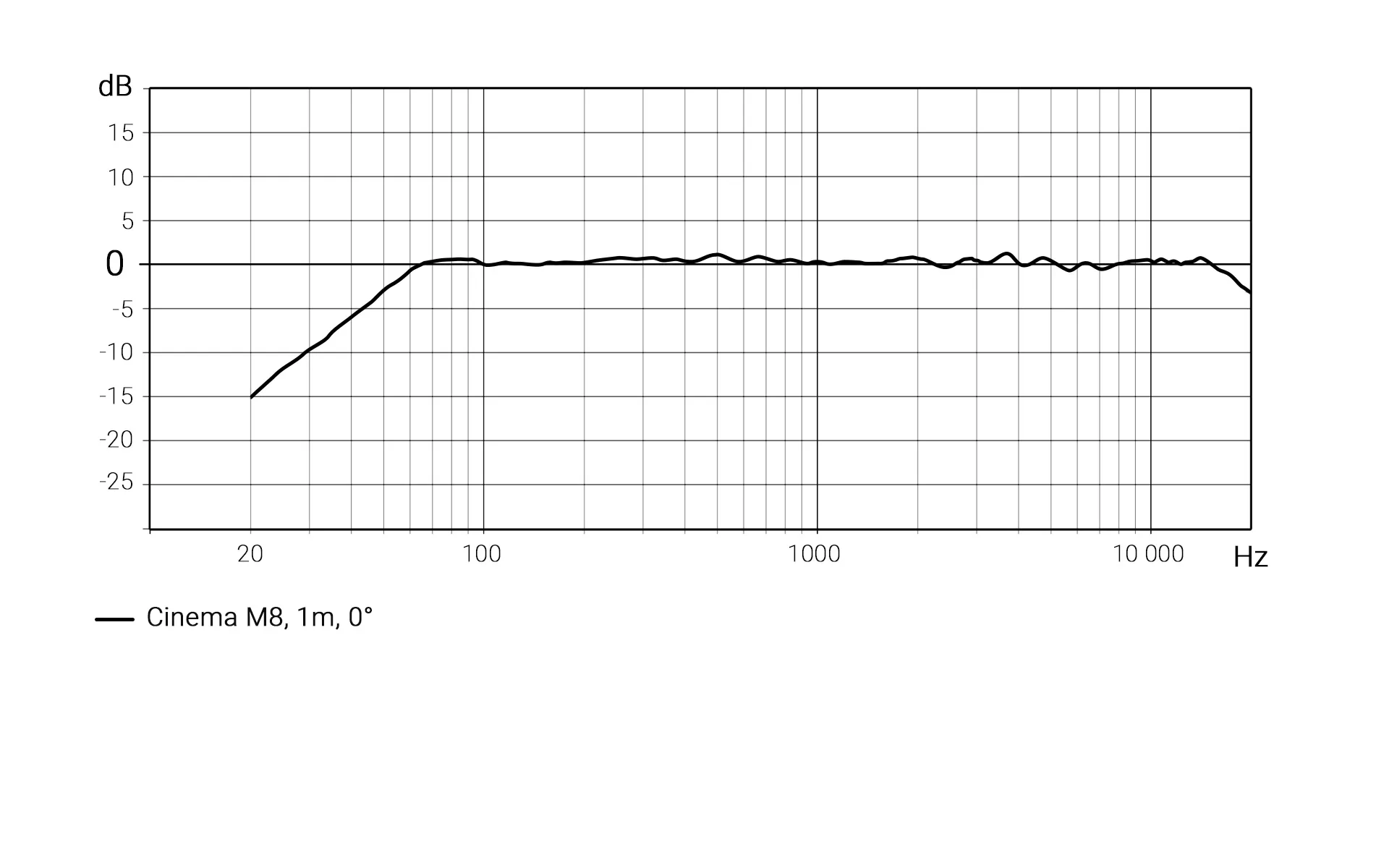

Extension down to 49 Hz
Delivers impactful, controlled bass even without a subwoofer in smaller rooms.
D'Appolito (MTM) configuration
Reduces vertical lobing and sidewall reflections while maintaining horizontal focus.
Low crossover point to tweeter array
The low 950 Hz crossover to the tweeter array ensures all drivers operate within their optimal range for better clarity. This allows smooth, phase accurate transitions with reduced off axis coloration.

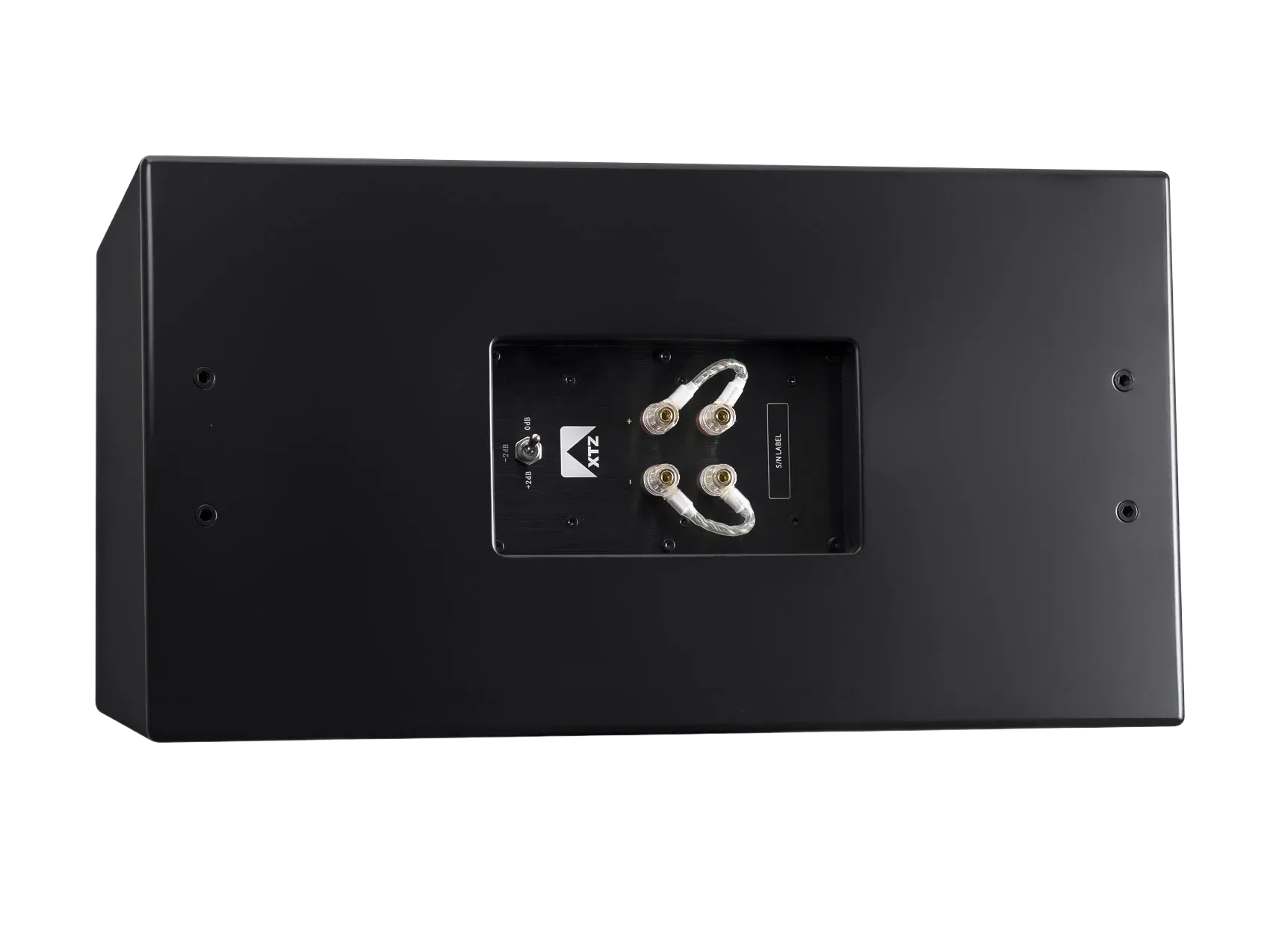

A rear-mounted toggle allows adjustment of the tweeter level by ±2 dB. This compensates for bright or absorptive rooms and tailors tonal balance to your preferences.
Treble control
Adjust high frequency output to match room acoustics or preferences.
The M8 Center uses a carefully tuned 3 way crossover network. The woofer filter uses 12 dB/oct slopes. The midrange tweeters are filtered with 18 dB/oct high pass and low pass sections. The high frequency tweeter uses an 18 dB/oct low pass. Filter points are chosen to avoid breakup modes and preserve natural response.
3 way crossover (950 Hz / 2500 Hz)
Precisely selected filter points maintain natural transitions and minimize coloration.
Custom filter slopes per driver
12 dB for woofer and 18 dB for both midrange and tweeter. This minimizes overlap and preserves clarity.
Premium passive components
Air core and steel core coils, MKP capacitors and low induction resistors provide stability and long term reliability.
The cabinet uses thick High Density Fiberboard (HDF) and internal bracing for rigidity and low resonance. Its trapezoidal form reduces internal standing waves, and a low reflection matte finish blends discreetly into dark rooms.
Reinforced HDF cabinet
Heavy, braced structure minimizes resonance.
Trapezoidal design with 7.5 angled baffle
Reduces standing waves and angles sound toward the listening area.
Anti reflective matte finish
Eight layers of anti reflective coating reduce visual distraction in dark rooms.
Magnetic grille
Attaches without visible mounts for a clean, unbroken front baffle
An optional Flushmount Kit enables vertical or horizontal on wall installation. A machined steel back plate and wall bracket ensure a flush fit with integrated cable routing.
Rigid Steel Wall Mount
Mount the speaker secure mechanical fit to a wall with clean aesthetic.
Flexible orientation
Fits different installation needs in multichannel setups.
15 mm cable clearance
15 mm clearance simplifies integration without visible clutter.
