XTZ InWall OnWall E-IW61

  REVIEWS

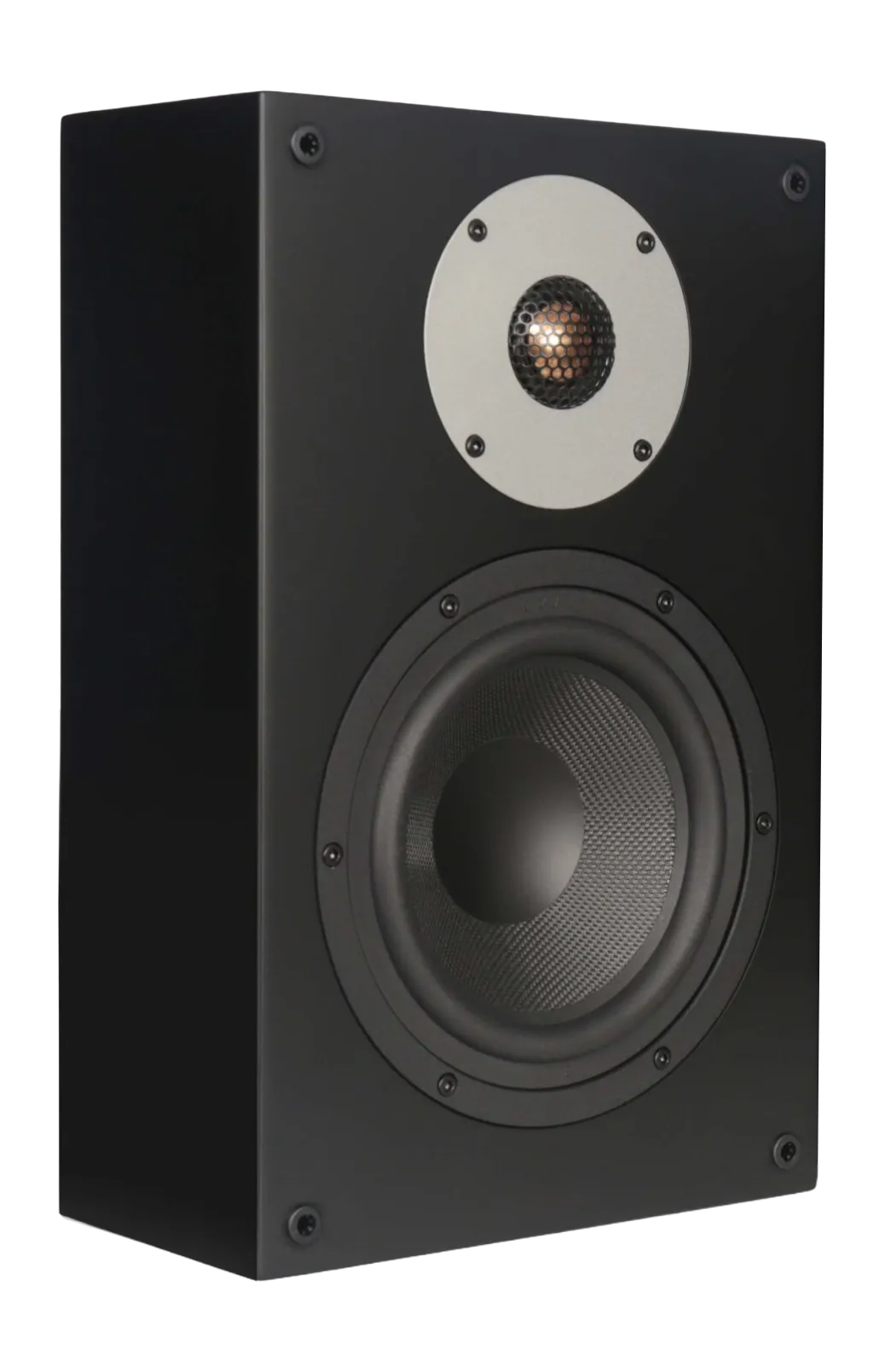

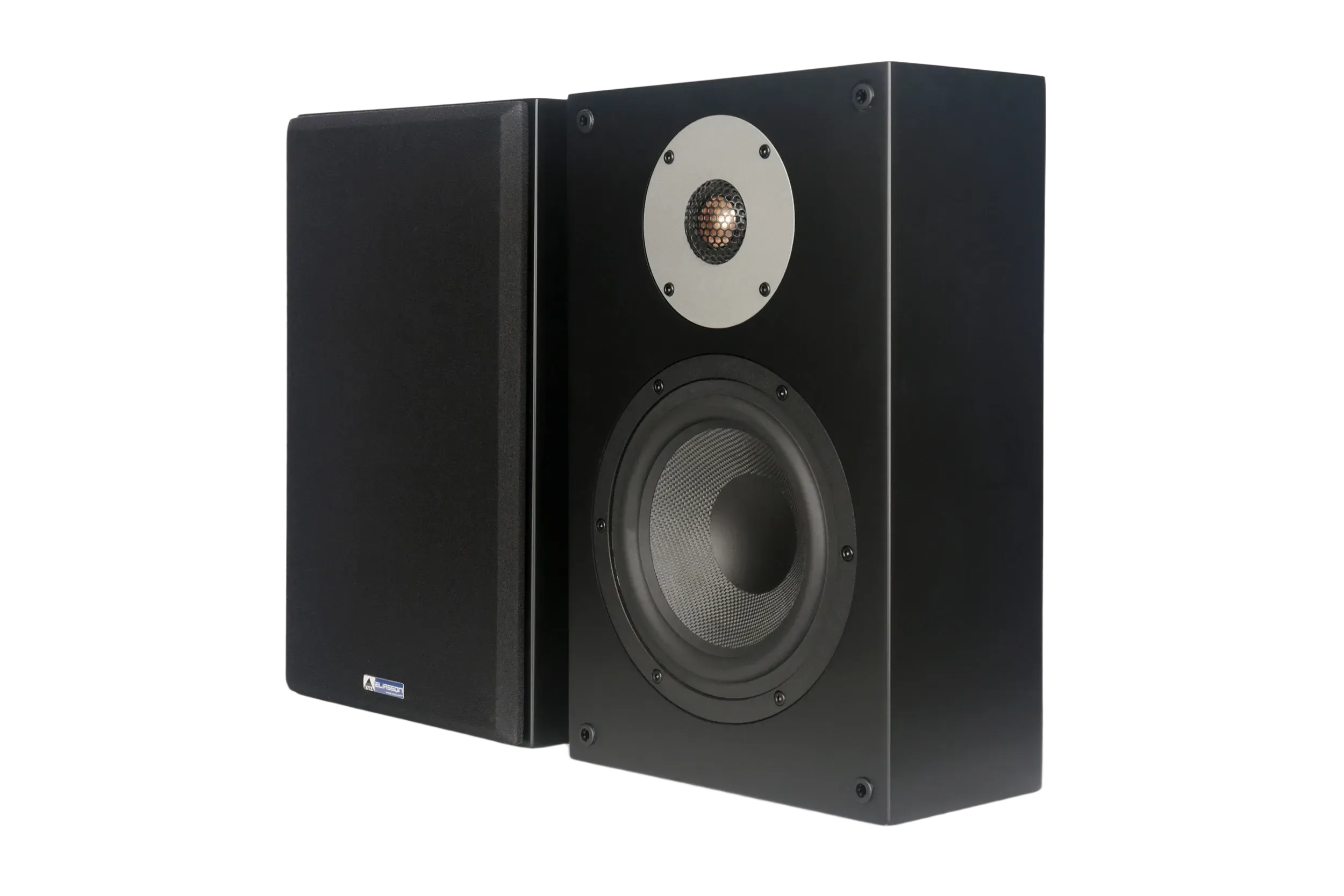

The XTZ E-IW61 is a compact 2-way speaker designed for on-wall or in-wall use in purpose-built home cinemas. Whether installed as side or rear surrounds or used in media room setups with clean aesthetics it delivers precise detail impressive dynamics and seamless spatial integration from a remarkably slim and refined form factor.

With a depth of just 117 mm and a sealed cabinet the E-IW61 is easy to install directly on the wall or flush-mounted into a shallow cavitywithout needing rear clearance or additional air volume. Its optimized for surround or rear channel use complementing the larger E-IW models in multi-channel systems.

30-Day Money Back Guarantee

Lifetime Customer Support

5-Year Warranty

In stock!
$349.00 $349.00

Including VAT (0%) $0.00

Quantity: 1 Pair

undefined

Currently unavailable

Compact size, cinema-grade performance

1" Al/Mg tweeter for clear, controlled treble

Handles high SPL with clean, dynamic playback

Discreet 117 mm on-wall installation

Fast, low-distortion bass from kevlar woofer

Voiced for accurate surround playback

Overview

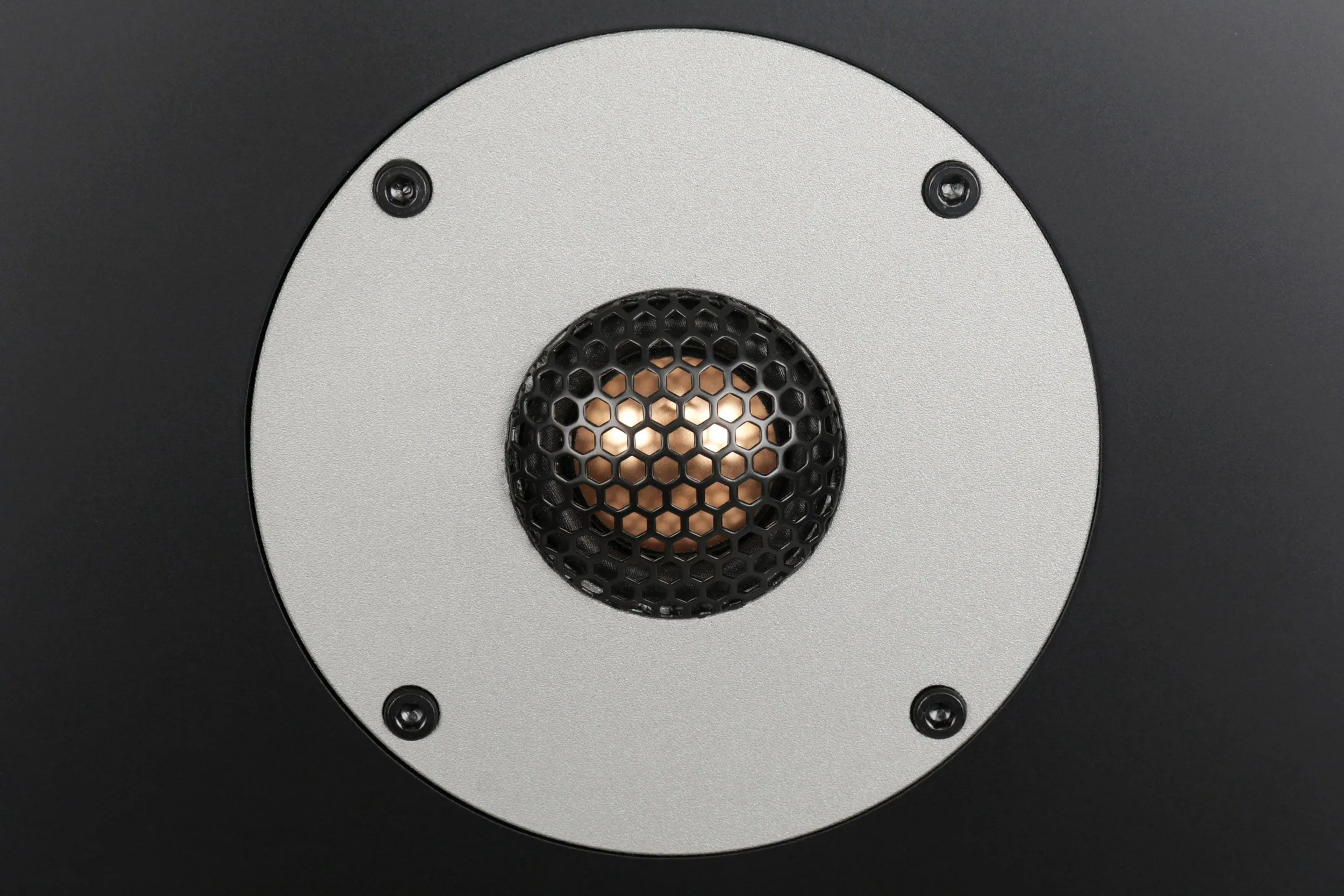

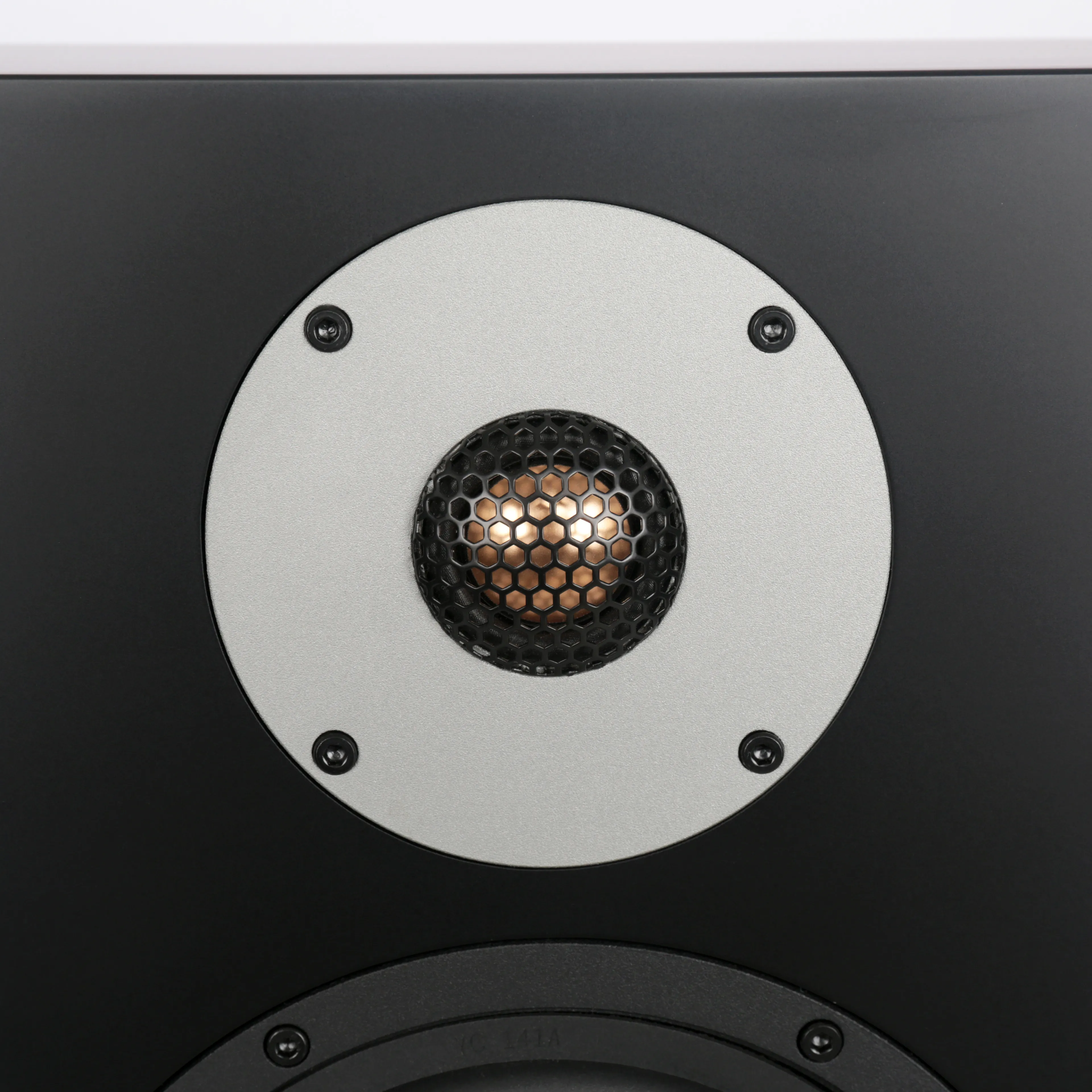

1" aluminum-magnesium tweeter

Clarity, stability, and control

The E-IW61 is engineered for clean, stable performance. Its 1-inch aluminum-magnesium alloy dome delivers excellent impulse response and natural dispersion, while a high-performance magnet system keeps the tweeter stable even at elevated playback levels. This ensures clean, detailed treble across the listening area. A protective perforated metal cover shields the driver while preserving acoustic transparency.

Extended high-frequency detail

Clear and consistent performance across the listening area.

Clean, fatigue-free treble

Stable and detailed sound, even at reference volume.

Screen-optimized clarity

Maintains clarity behind acoustically transparent fabric.

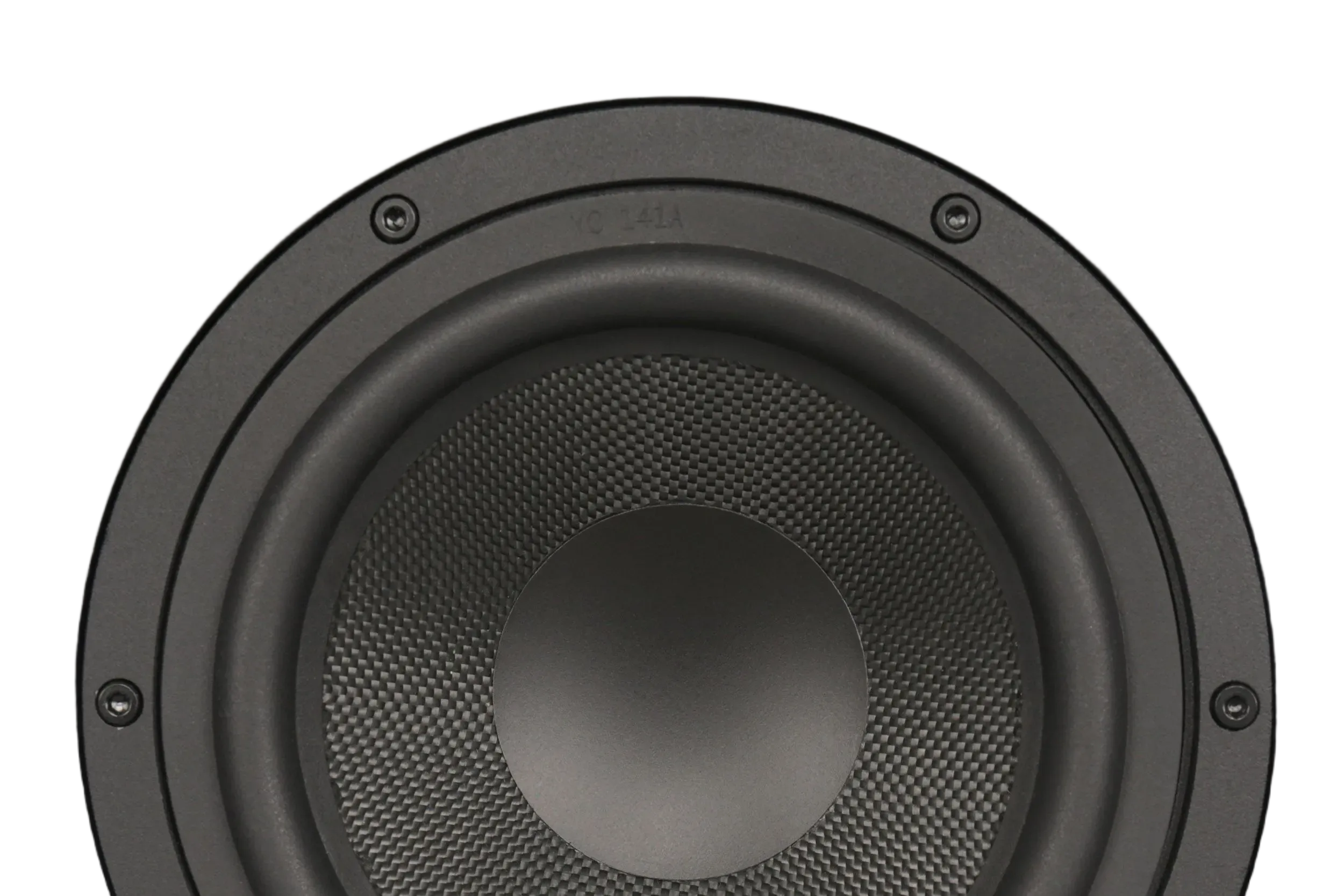

6.5" kevlar mid/bass driver

Fast transients. Clear presence. Compact power.

The E-IW61 features a 6.5-inch long-throw Kevlar woofer housed in a rigid cast aluminum basket and powered by a custom motor system developed through XTZ’s in-house R&D. The lightweight, rigid Kevlar cone delivers fast transients, extended dynamics, and controlled bass, enabling precise reproduction of spatial effects and low-frequency detail, even at reference levels. Its impressive size-to-performance-ratio makes it ideal for modern surround formats and immersive audio applications.

Advanced Kevlar Cone

Maintains tight control and prevents distortion, even at high volumes, due to ideal balance of rigidity and low mass.

Controlled low-frequency response

Strong bass and midrange presence in a compact format.

Optimized for surround playback

Voiced for ambient and directional accuracy in modern formats.

Slim sealed enclosure

Compact form, cinema-ready sound

The E-IW61’s matte black enclosure, made from 18mm MDF is internally damped and sealed to reduce resonance and maintain fidelity. With a 117 mm profile, it supports both flush in-wall and low-profile on-wall installation using keyhole mounts. Making it a refined, flexible solution without compromising sound quality.

Rigid Enclosure

18mm thick MDF and internal damping prevents unwanted resonances and preserves clarity

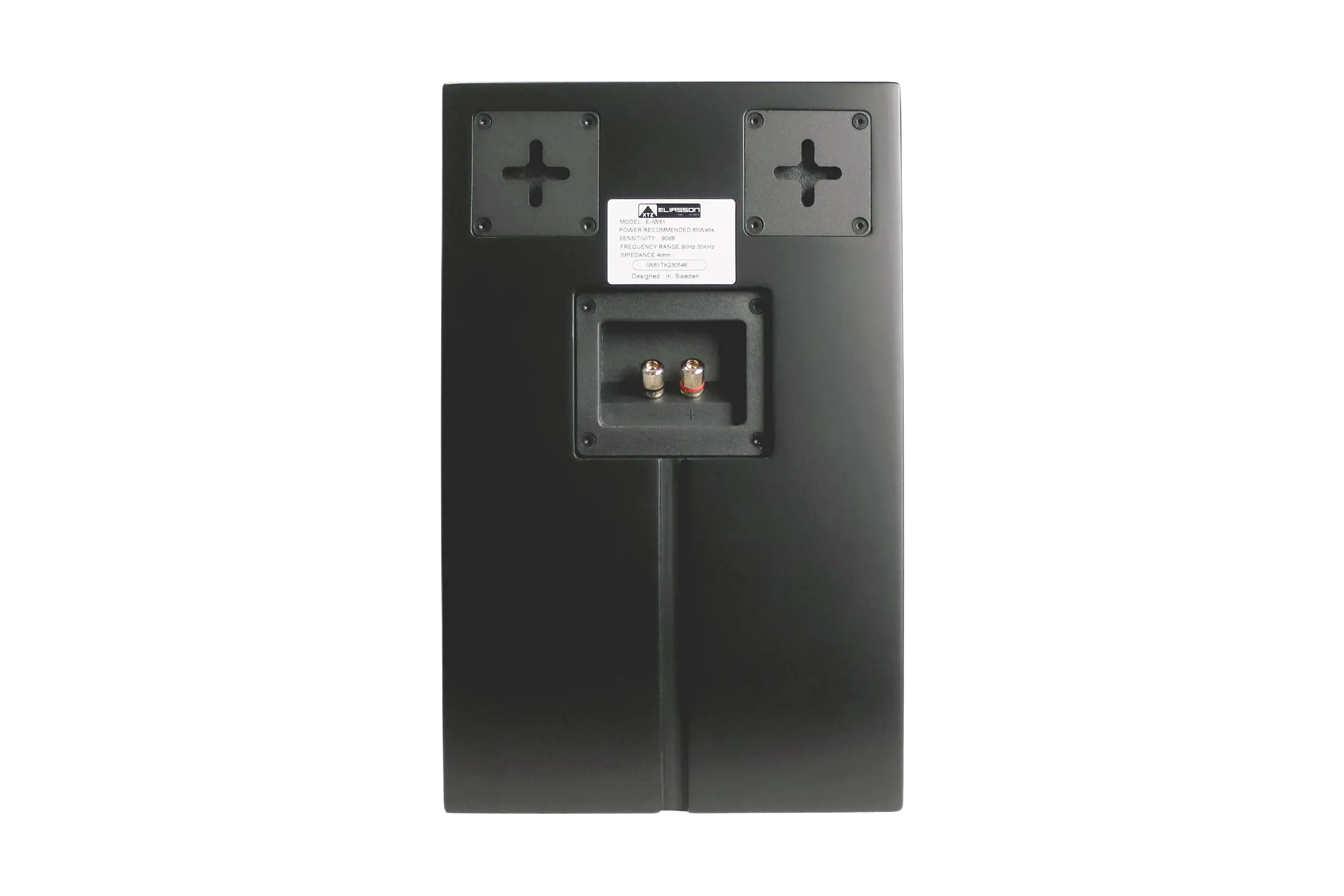

Slim profile with keyhole mounts

Only 117 mm deep and keyhole mounts makes E-IW61 as ideal for both in-wall and on-wall use.

Discreet matte black finish

Reduces visual distraction in dark room environments

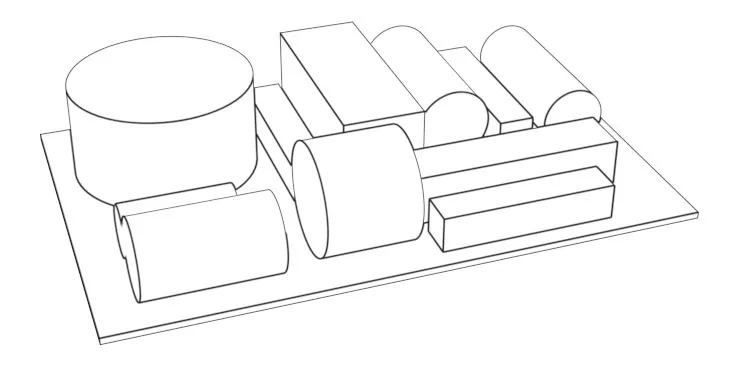

Crossover

Seamless integration and pure signal path

A bespoke crossover network is meticulously engineered for the E-IW6, ensuring a perfect and phase-coherent transition between the tweeter and the mid/bass driver. This is crucial for its overall natural and accurate sound reproduction.

Optimized for Coherence

Ensures seamless, phase-coherent driver integration for a unified and immersive soundstage.

Premium components

High-grade film capacitors and air-core inductors ensure great transparency and low distortion.

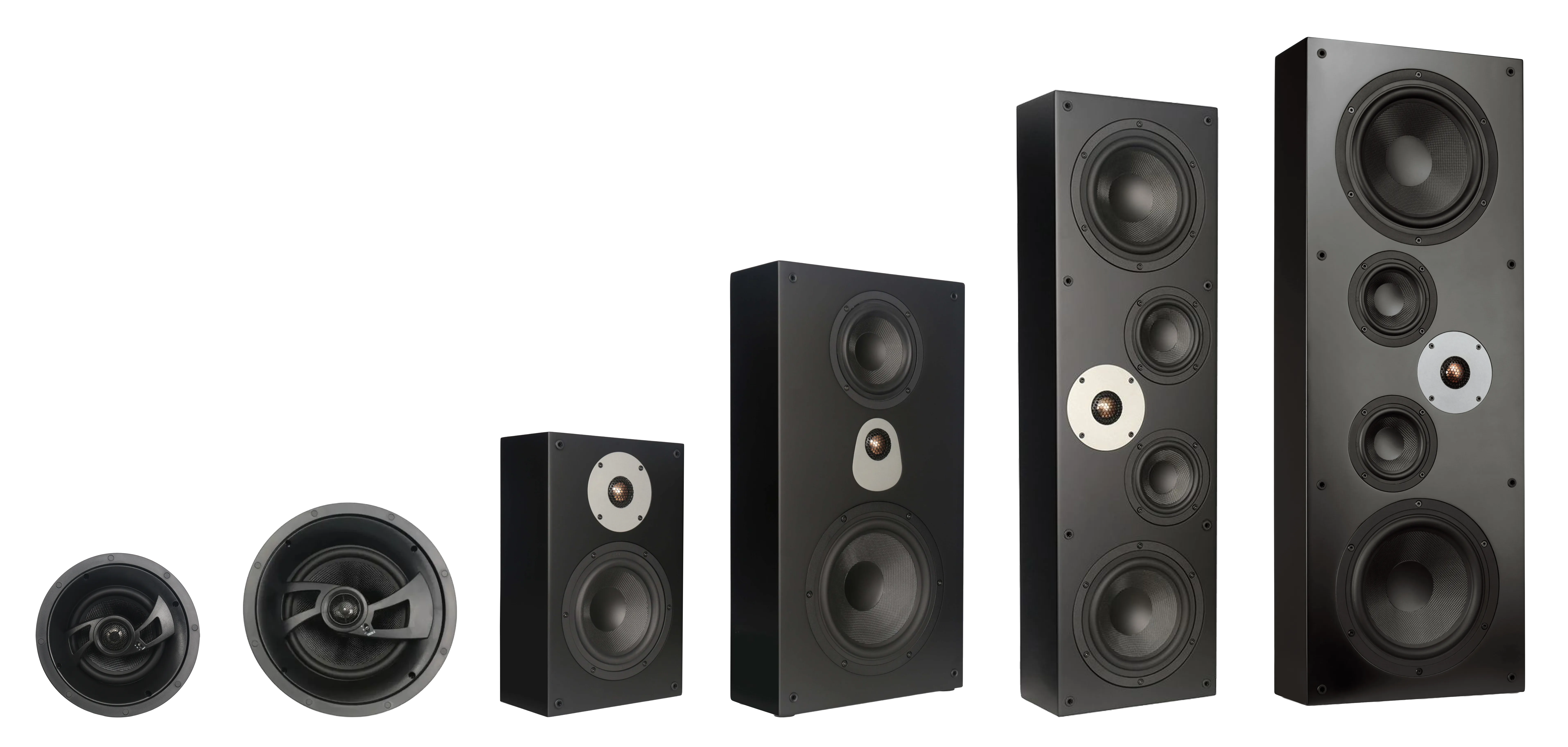

The inwall / inceiling series guide

Crafting Your Surround System

If you're building a discreet, high-performance home cinema, the InWall / InCeiling Series provides a flexible foundation for both front-stage and surround applications. All models share the same acoustic DNA, ensuring seamless tonal integration whether mounted behind a screen, on the wall, or paired with XTZ’s in-ceiling speakers for immersive formats like Dolby Atmos® and DTS:X®.

Technical specifications

Construction Type
2-way In-Wall / On-wall speaker
Tweeter driver
1 x 25 mm (1 inch) Aluminium-magnesium alloy dome
Midrange Driver
1 x 165 mm (6.5 inch) Kevlar composite cone
Frequency Response
90 - 30.000 Hz (+/- 3dB)
Nominal impedance
4 Ohm
Sensitivity
90 dB (2,83 V/1 m)
Power handling
160 W Short term, 80 W Long term
Connections
Gold plated
Cover
Black fabric, plug-in / detachable
Dimensions
220 x 350 x 117 mm / 8.7 x 13.8 / 4.6"
Weight
5.8 kg / 12.8 lbs
Wall mounting
Keyhole mounting slots
Available colours
Matte black
Warranty
5 years
Quantity
1 Pair
